Overview

This section covers information about Interactions API requests with VAN's Canvass Responses endpoint as a Destination for Interactions API data.

Interactions App

Check out our Set Up for Sources section if you do not already have an Interactions API App required for sending data to VAN endpoints.

Additional API Request Validation

Interactions API requests using an API key configured with VAN Canvass Responses as a destination are subjected to additional validation. This includes:

The person array must include one object with type of "VAN".
All survey response outcomesDetailed objects (indicated by the "survey_response" type) must include questionId and responseId. These must be valid VAN survey question and response IDs.
All activist code outcomesDetailed objects (indicated by the "activist_code" type) must include activistCodeId. This value must be a valid VAN Activist Code ID.
The vanFields object must be provided and include integer values for contactTypeId (required) and resultCodeId (conditionally required; see below).
1. resultCodeId is required if no activist code or survey response objects are provided in outcomesDetailed.
2. If one or more activist code or survey response objects are provided, resultCodeId must be null or 14 ("Canvassed").

An example of a valid request can be found on the API Examples page (Scenario 6).

VAN-Specific Fields: Required & Conditional

The table below describes which VAN-specific fields are required in the Interactions API request if VAN Canvass Response is a Destination on your API key. All other non-VAN-specific required fields for the Interactions API are also validated.

Interactions API Field	Required?	Notes
Person ID
`person[].type: "VAN"`	✅	Always required when VAN is a Destination. The `person` array must include one object with `type` of `"VAN"`. The `id` value is the VAN ID and maps to `vanId` in the VAN request URL. `contactInfo` cannot substitute for this.
`vanFields` object
`vanFields.contactTypeId`	✅	Always required when VAN is a Destination.
`vanFields.resultCodeId`	🧐	Conditional Required when no `activist_code` or `survey_response` objects are present in `outcomesDetailed`. Must be `null` or `14` ("Canvassed") when one or more of those objects are present.
`outcomesDetailed` — Survey Response
`outcomesDetailed[].type: "survey_response"`	🧐	If including a Survey Response object, must include `questionId` and `responseId` as values.
`outcomesDetailed.value.questionId`	🧐/✅	Required if including a Survey Response. Must be a valid VAN Survey Question ID.
`outcomesDetailed.value.responseId`	🧐/✅	Required if including a Survey Response. Must be a valid VAN Survey Response ID.
`outcomesDetailed` — Activist Code
`outcomesDetailed[].type: "activist_code"`	🧐	If including an Activist Code object, must include `activistCodeId` and `text` as values.
`outcomesDetailed.value.activistCodeId`	🧐/✅	Required if including an Activist Code. Must be a valid VAN Activist Code ID.
`outcomesDetailed.value.text`	🧐/✅	Required if including an Activist Code.
`outcomesDetailed` — Communication Consent
`outcomesDetailed.value.consentStatus`	🧐	Conditional Only maps to VAN's `canvassContext.phone.smsOptInStatus` when `method` is `"text"` or `"text_broadcast"`.
Channel — Phone Number type
`channel.type: "phone_number"`	🧐/✅	Conditional but required when `method` is phone-related Required for phone data to populate VAN's canvass context. `channel.value` is split into `canvassContext.phone.dialingPrefix` and `canvassContext.phone.phoneNumber`.

How is data mapped to VAN Canvass Responses requests?

The table below describes how data on the Interactions API request is mapped to a VAN Canvass Response request.

Interactions API request property	VAN Canvass Response request property	Notes
Static value of "11" ("API")	`inputTypeId`
`vanFields.contactTypeId`	`contactTypeId`
`vanFields.resultCodeId`	`resultCodeId`
`attemptDateTime`	`dateCanvassed`
`person.id`	`vanId` in request URL	Must have at least 1 `type` of "VAN" in `person` array
`outcomesDetailed.value. activistCodeId`	`responses.activistCodeId` (in a Script Response object with `type` of "ActivistCode")	Must have `type` of "activist_code" in `outcomesDetailed`
`outcomesDetailed.value. questionId`	`responses.surveyQuestionId` (in a Script Response object with `type` of "SurveyResponse")	Must have `type` of "survey_response" in in `outcomesDetailed`
`outcomesDetailed.value. responseId`	`responses.surveyResponseId` (in a Script Response object with `type` of "SurveyResponse")	Must have `type` of "survey_response" in `outcomesDetailed`
`outcomesDetailed.value. consentStatus`	`canvassContext.phone. smsOptInStatus`	Must have `type` of "communication_consent" in `outcomesDetailed` Only populated if `interaction.method` is "text" or "text_broadcast" "opted_in" is mapped to "I"; "opted_out" is mapped to "O"
`channel.value`	Mapped to `canvassContext.phone. dialingPrefix` and `canvassContext.phone. phoneNumber`	Must have `type` of "phone_number" in `channel`

Fetching VAN API transactional logs

Status and logs regarding integration with the VAN API can be fetched two ways:

By date, using the endpoint described here.
By interactionId, which can be found in successful POST /interactions responses, using the endpoint described here.

Admin API endpoints for VAN Keys

Interactions API Keys with VAN as a Destination require a VAN API Key. If the Interactions API Key is provisioned via API, the VAN API key can be added by the provisioned key Source.

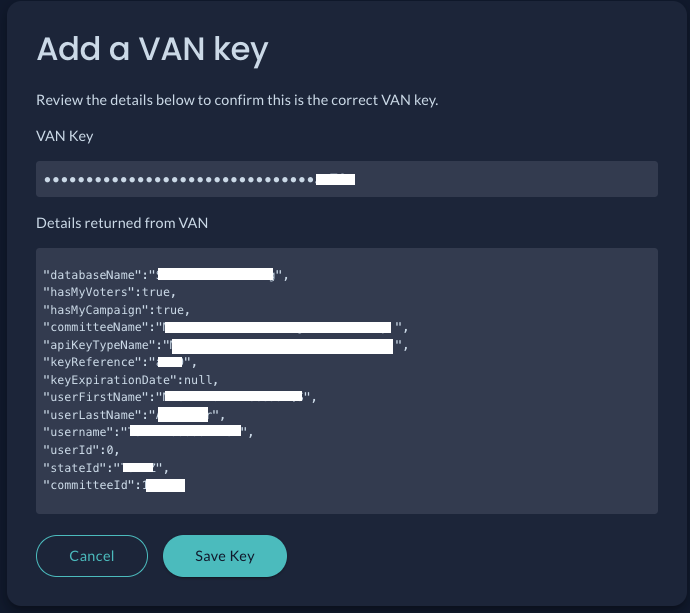

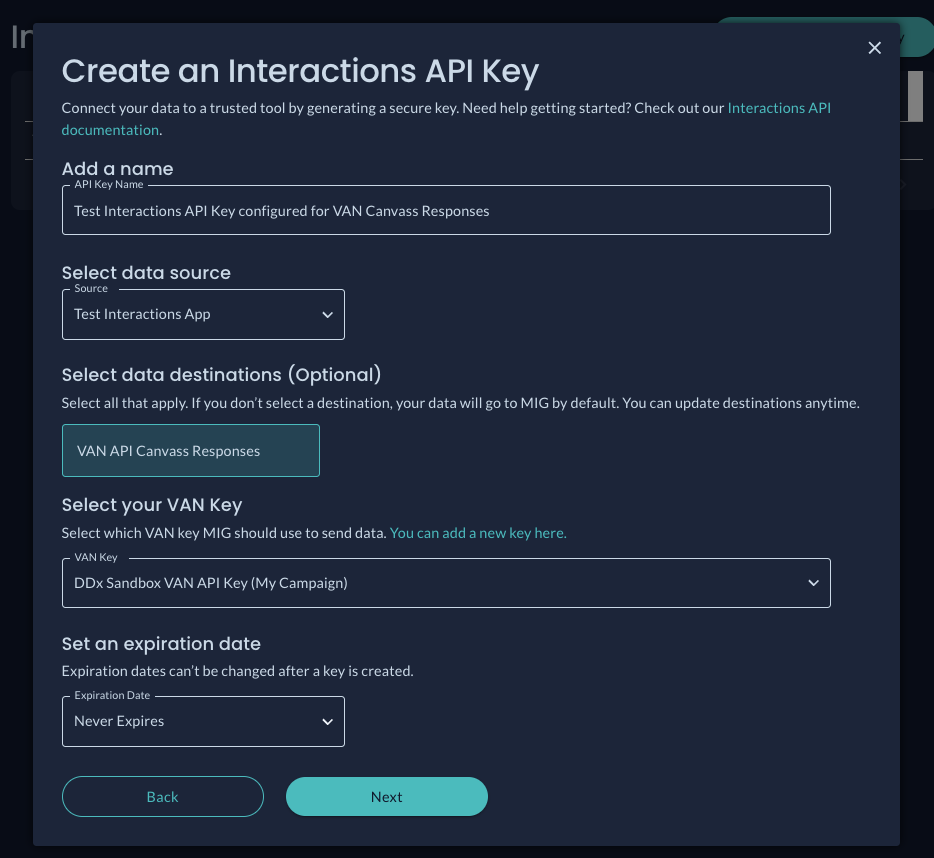

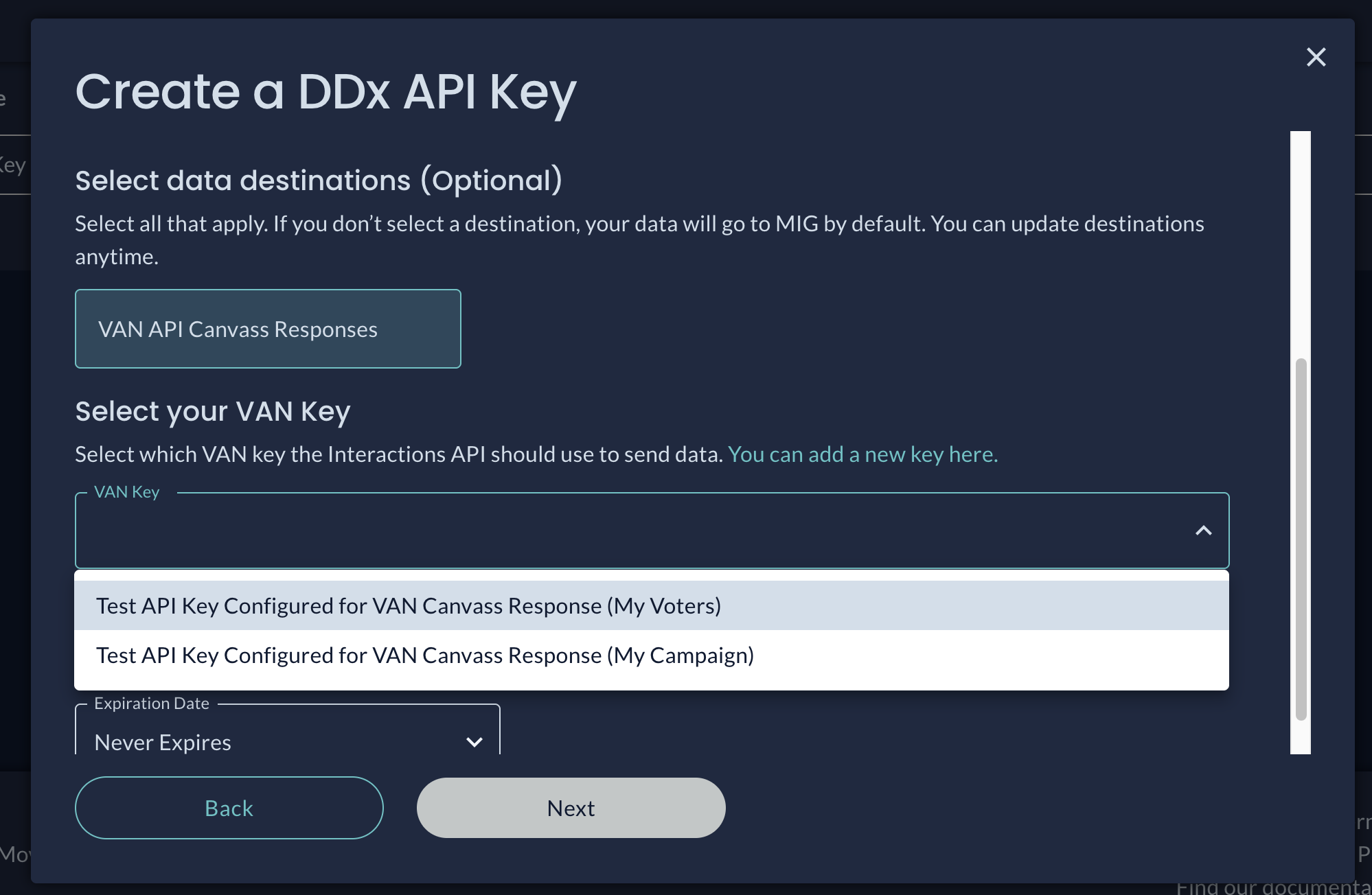

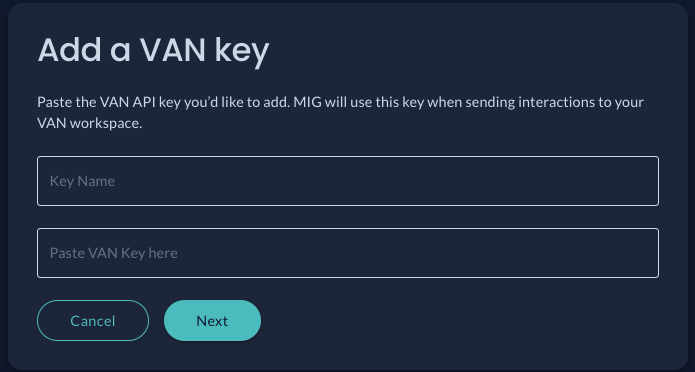

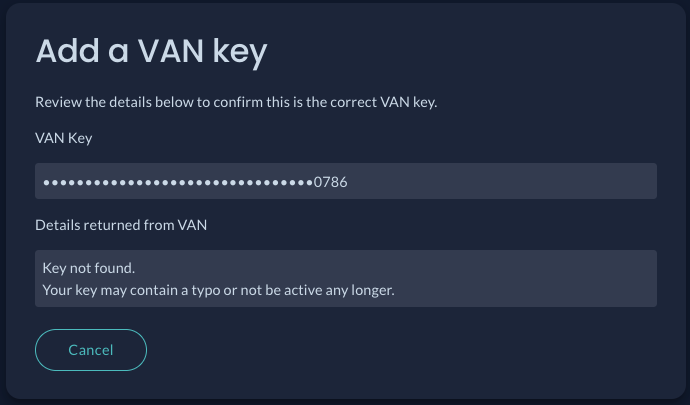

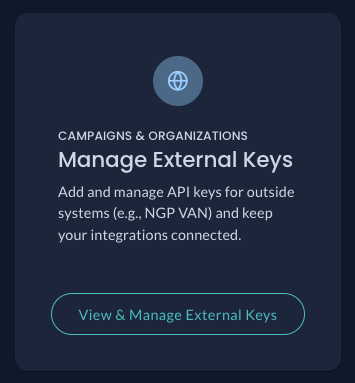

If a data owner uses the Console to provision an Interactions API Keys with VAN as a Destination, the VAN API Key must be provided by the data owner upon Interactions API Key creation.

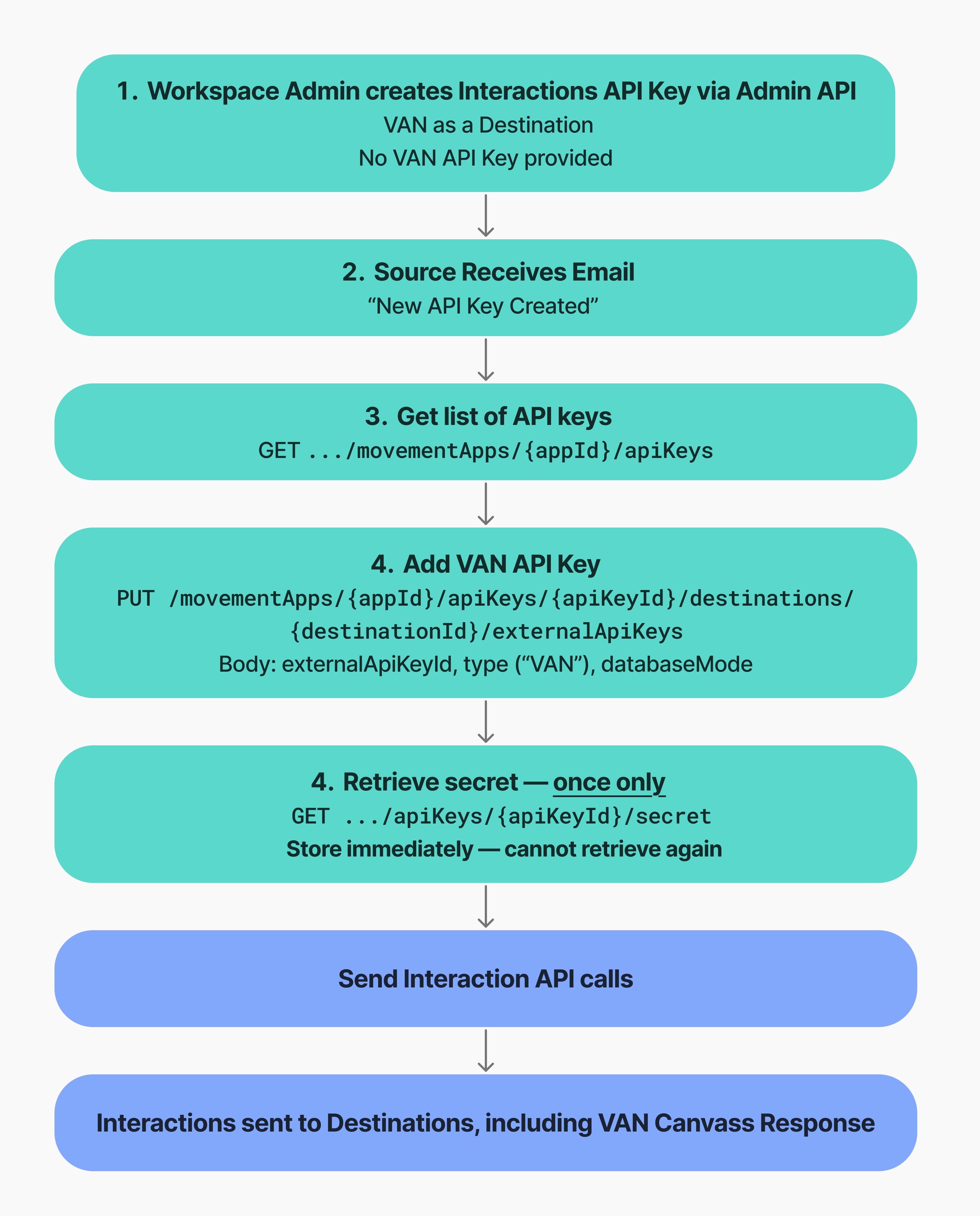

Below is a flow chart of Admin API endpoints a Source would use to add a VAN API Key, and access the Interactions API Key secret.

Validating VAN API Key configuration

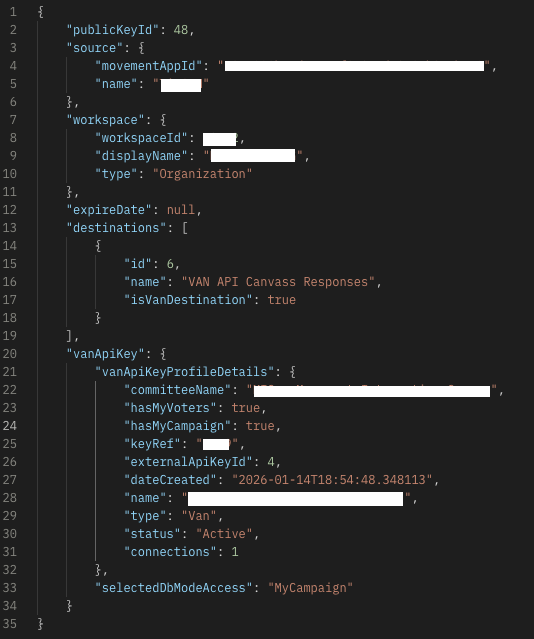

The /v1/auth/me endpoint enables two things: confirmation that you're using your key correctly and the ability to confirm the workspace, source and destination details (particularly selectedDbModeAccess).

📣
For questions about sending data to VAN's Canvass Responses endpoint please reach out to us at [email protected]!
